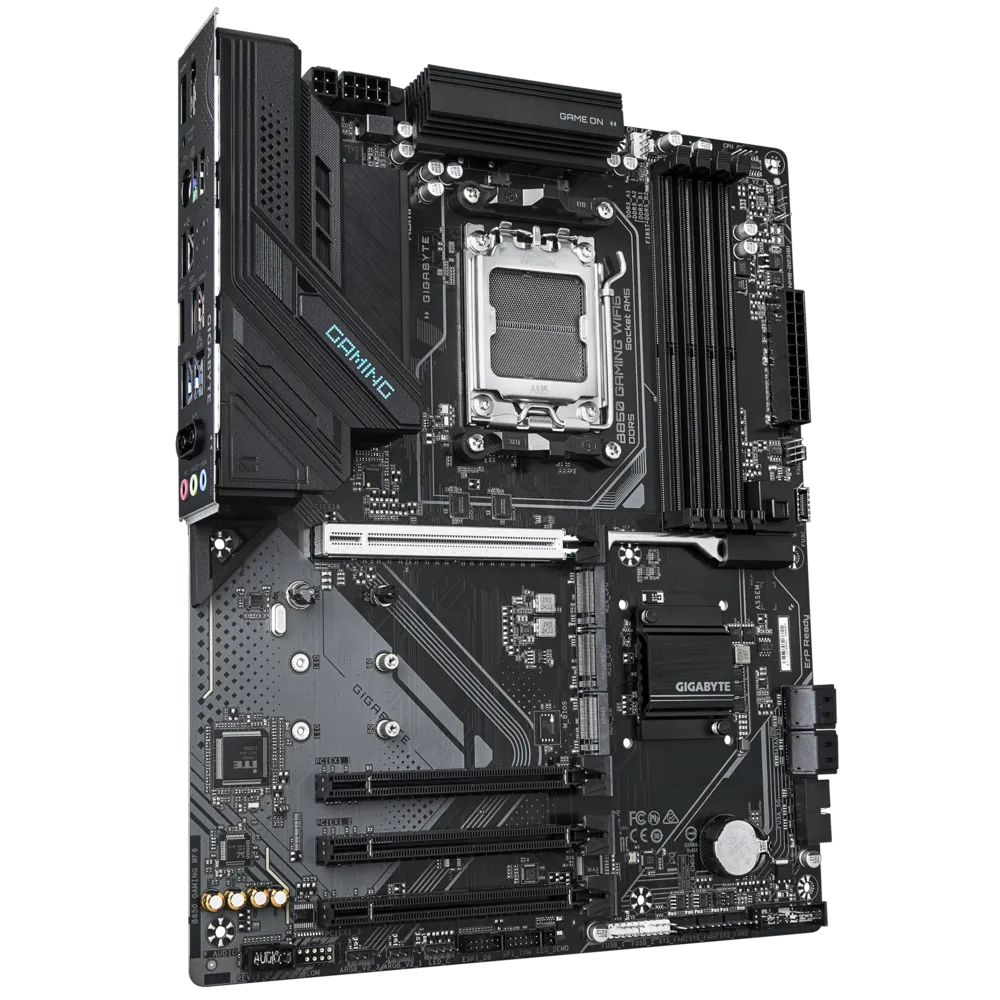

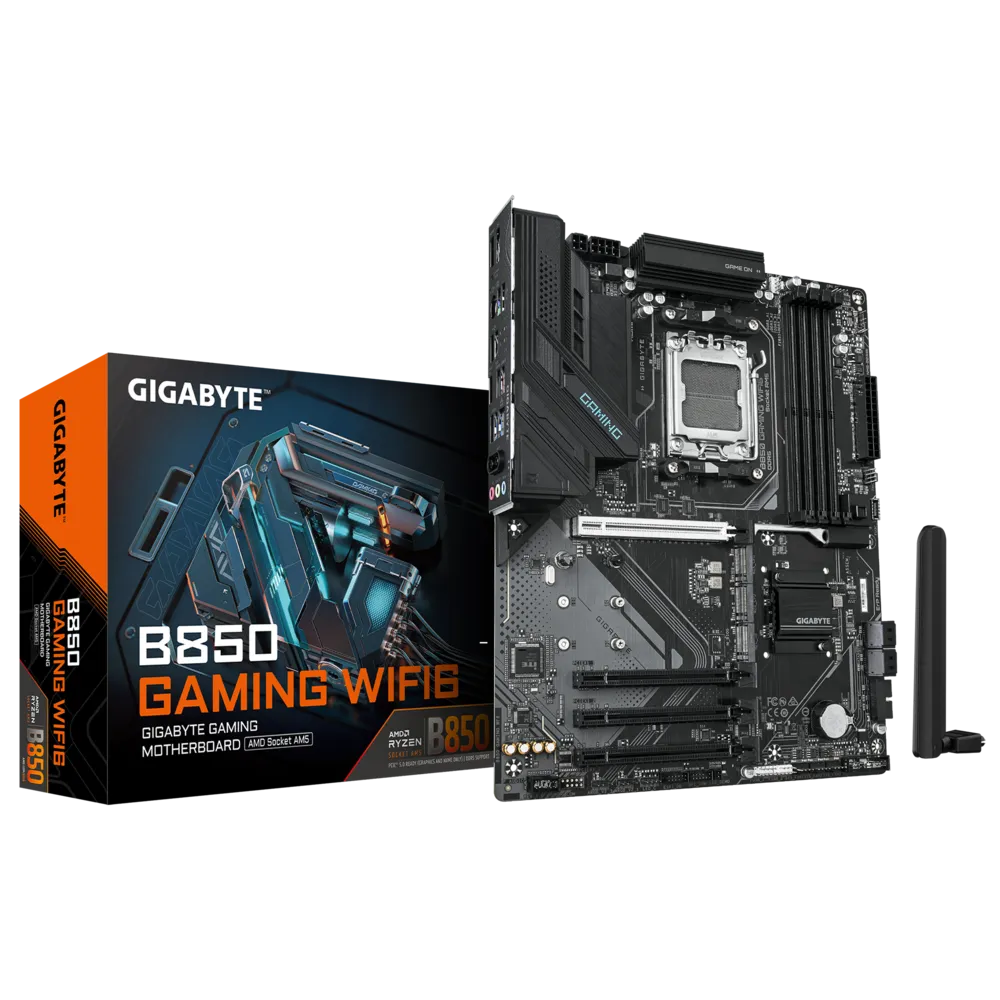

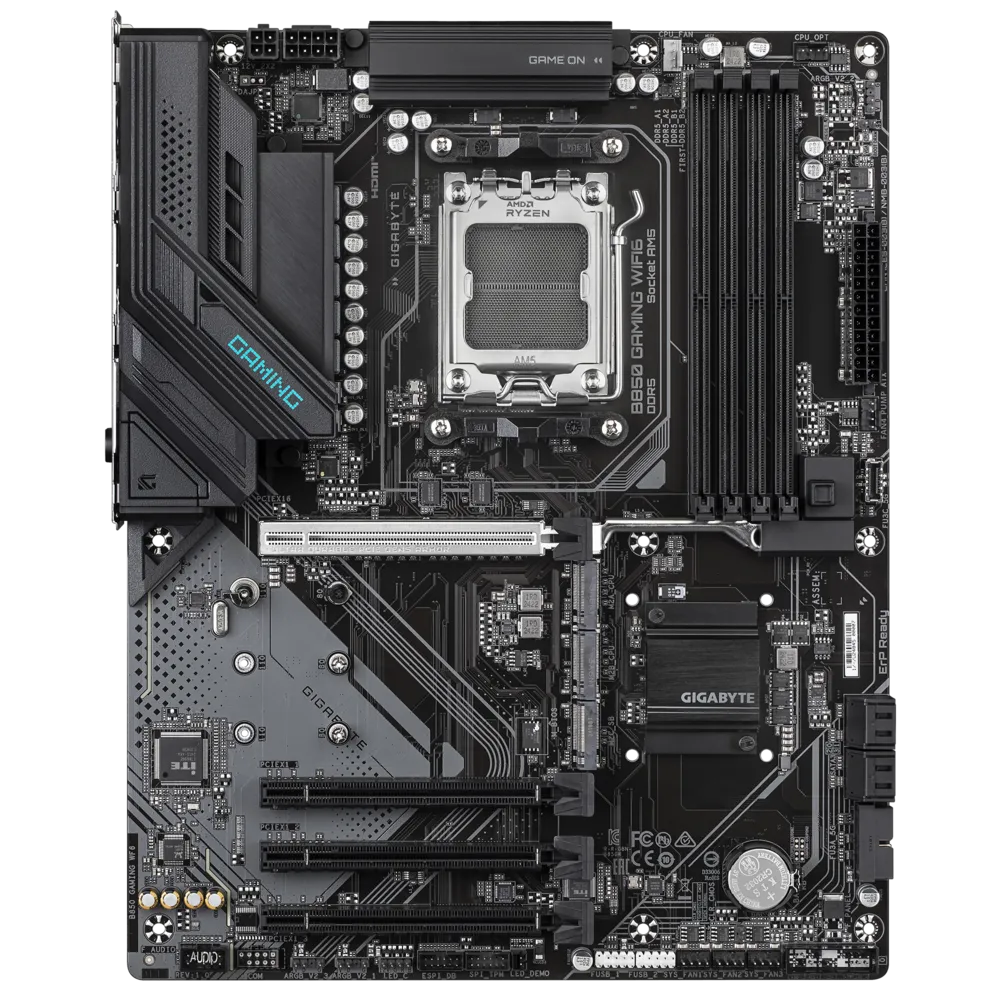

GIGABYTE B850 GAMING WIFI6 AMD AM5 LGA 1718 Motherboard, ATX, DDR5 8200MT/s, PCIe 5.0, 3x M.2, USB-C, WIFI6E, 1GbE LAN, EZ-Latch, RGB, Q-Flash, X3D Turbo Mode, HDMI/DP Output

GIGABYTE B850 GAMING WIFI6 AMD AM5 LGA 1718 Motherboard, ATX, DDR5 8200MT/s, PCIe 5.0, 3x M.2, USB-C, WIFI6E, 1GbE LAN, EZ-Latch, RGB, Q-Flash, X3D Turbo Mode, HDMI/DP Output

$213.00 USD
$213.00 USD
Sale Sold out
Shipping calculated at checkout.

GIGABYTE B850 GAMING WIFI6 AMD AM5 LGA 1718 Motherboard, ATX, DDR5 8200MT/s, PCIe 5.0, 3x M.2, USB-C, WIFI6E, 1GbE LAN, EZ-Latch, RGB, Q-Flash, X3D Turbo Mode, HDMI/DP Output

SPECIFICATIONS:

CPU: AMD AM5, supports Ryzen™ 9000 / 8000 / 7000 series
Chipset: AMD B850
Memory: 4× DDR5 DIMM, up to 256GB, 8200 MT/s (OC), AMD EXPO™ & XMP support
Onboard Graphics: 1× HDMI 2.1, 1× DisplayPort 1.4
Audio: Realtek® HD Audio, up to 7.1 channels, noise guard & premium capacitors
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module: 1GbE LAN (Realtek), Wi-Fi 6 (802.11ax), Bluetooth 5.3
Expansion Slots:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
USB:
  • CPU:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

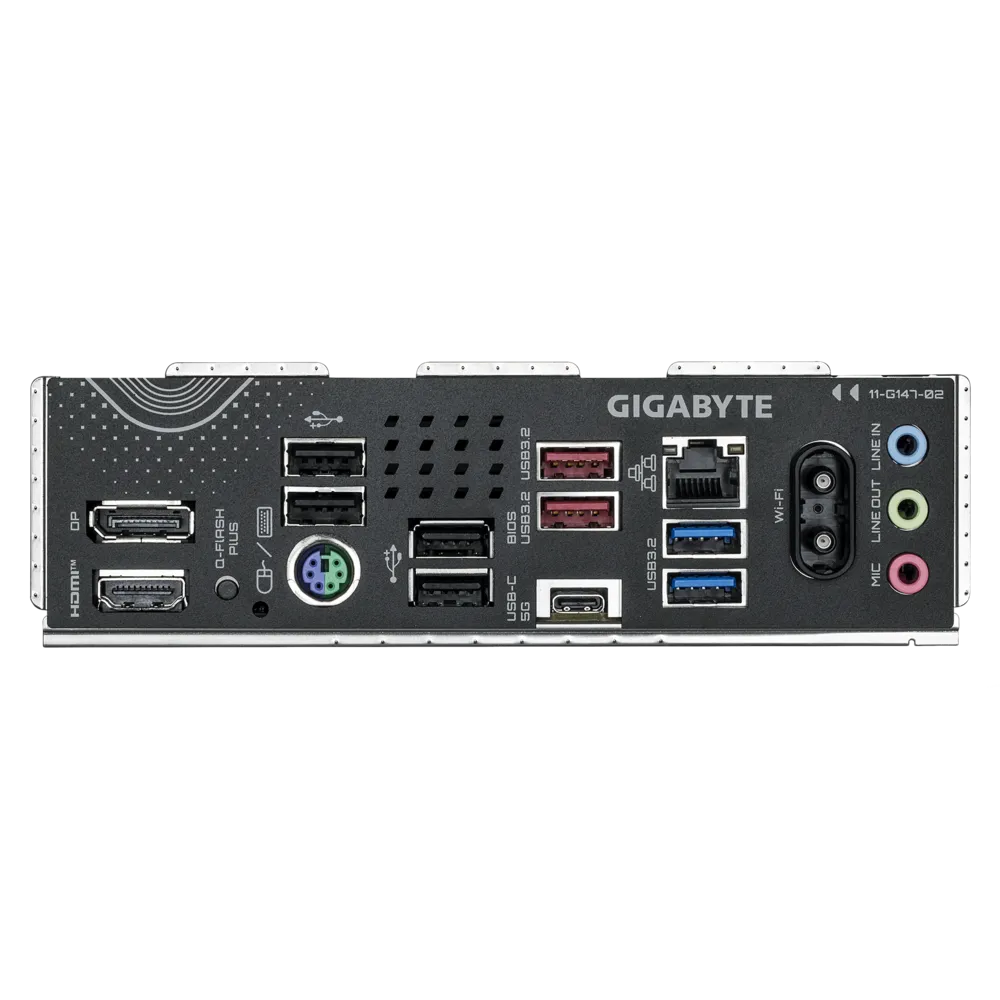

Back Panel Connectors:
  • 1 x DisplayPort (Note)
  • 1 x HDMI port (Note)
  • 1 x Q-Flash Plus button
  • 4 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 1 x RJ-45 port
  • 2 x USB 3.2 Gen 1 ports
  • 2 x antenna connectors (2T2R)
  • 3 x audio jacks
BIOS Features: HyperTune, Multi-Theme, AIO fan control, Q-Flash Plus, UEFI, 256Mbit flash


Operating System: Support for Windows 11 64-bit / Windows 10 64-bit
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
