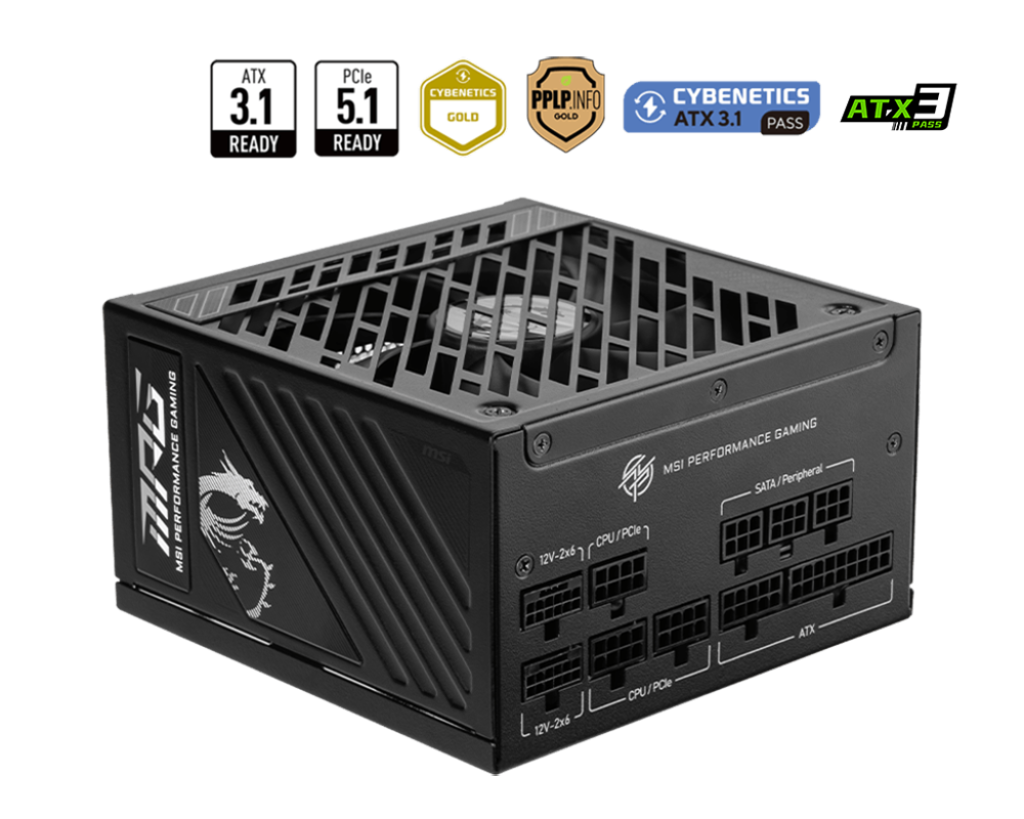

MSI MAG A1000GS PCIE5 1000W Power Supply, Full Modular, BLACK

FEATURES

• Supports Nvidia^® GeForce RTX^TM 50 series graphics cards
• 2 x native 12V-2x6 connector
• Dual-color 12V-2x6 cable
• 80 PLUS Gold certified
• Optimized the sound level
• 100% all Server-grade 105^oC capacitor
• Embossed Jacket Cables, the cables are more bending and routing
• Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

SPECIFICATIONS:

• WEIGHT (CARD): 169g
• Dimensions: 120mm x 120mm x 25.6mm
• Modular: Yes (full modular)
• Fan Bearing: Fluid Dynamic Bearing
• Bearing Type: Hydro-Dynamic Bearing
• Rated Speed: 500 - 1800 ±15% RPM
• Power Watt: 1000W
• Input Voltage Range: 100-240V~
• Power Excursion: 2350W (*up to 235% of the PSU's rated power for 100μs)
• Air Flow: 19.79 - 71.27 CFM
• Static Air Pressure: 0.16 - 2.09 mm-H20
• Input Frequency: 50-60 Hz

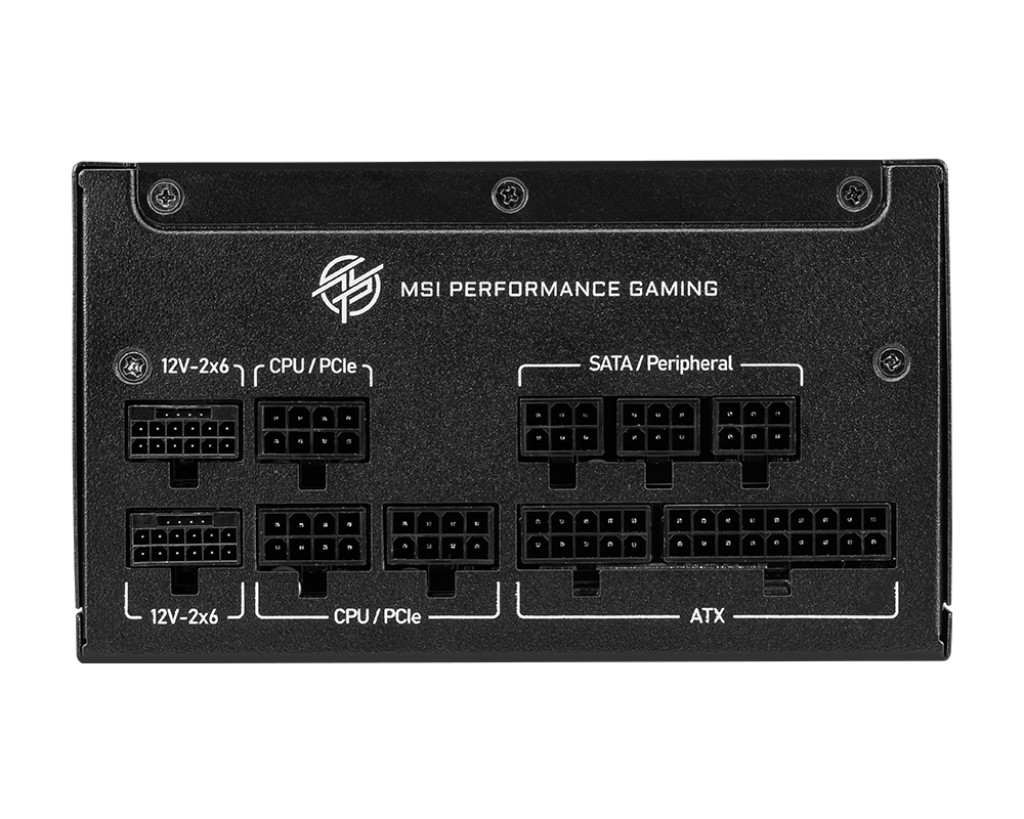

• ATX (24 pin): 1
• Connector: 4-Pin PWM/DC
• Efficiency: 80 PLUS Gold (up to 90%)
• Life Expectancy: MTTF 150,000 Hours (25℃)
• EPS (4+4 PIN): 2
• PCI-E 5.1 (16 pin): 2 (600W)
• Fan Size: 135 mm
• Dimension: 150 x 150 x 86 mm
• PCI-E (6+2 pin): 1
• PFC Type: Active PFC
• SATA (15 pin): 8
• Protection: OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
• MOLEX (4 pin): 4
• UPC: 0824142376300
